Redneck truing stand for bicycle wheels

A cheap, homebuilt alternative to an expensive wheel truing stand.

Redneck truing stand
If you have an old, defective frame with cantilever/V-brake bosses, you can cut it up into a DIY wheel truing stand.

Truing stand assembly details
The cut off rear triangle of the frame mounted on an old wooden board using countersunk U-bolts and tensioned metal bands to further stabilize it.

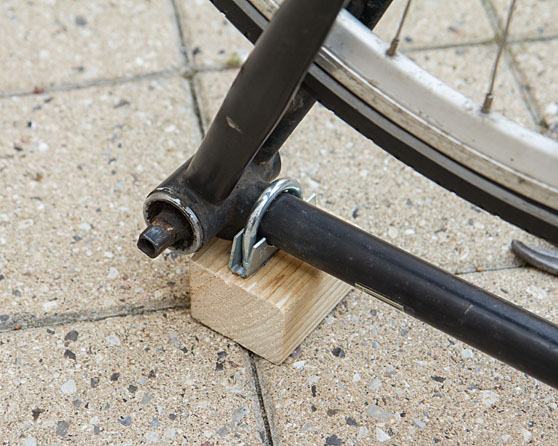

Third leg of truing stand
A narrow "third leg" ensures inherent stability on uneven surfaces.

Truing stand build details
Larger-diameter washers has been added between the old cantilever brake arms and the retention screws to intentionally make them bind, so friction is used to position them.

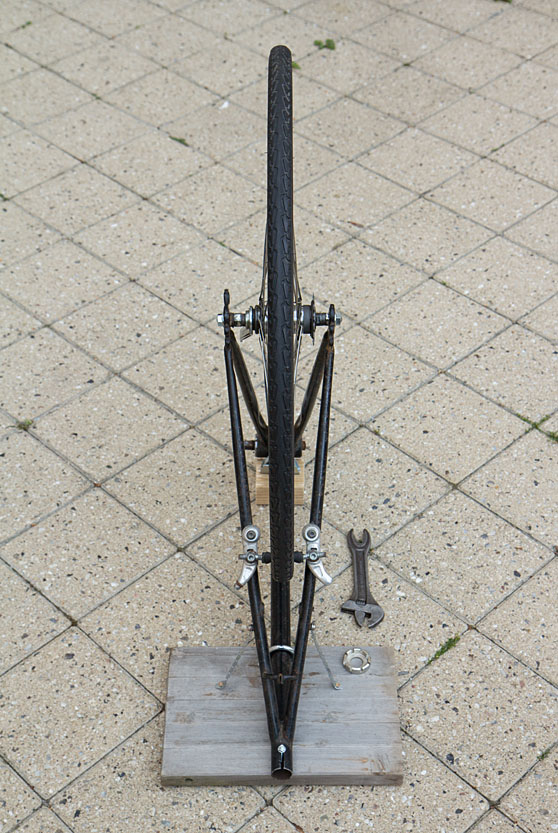

Truing stand as seen from working position
For the basics of truing a bicycle wheel, refer to this video.

Truing stand without wheel mounted
Note that the supporting struts between the seat stays and chain stays have been sawed off to make the fork a bit more sideways flexible. This is to also make it compatible with narrower hubs.

Updated 2016. Also made a dedicated stand specifically for front wheels (with 100mm lock nut spacing):

Truing stand with dial indicator
Redneck truing stand for front wheels
Tags: diy, bicycle
